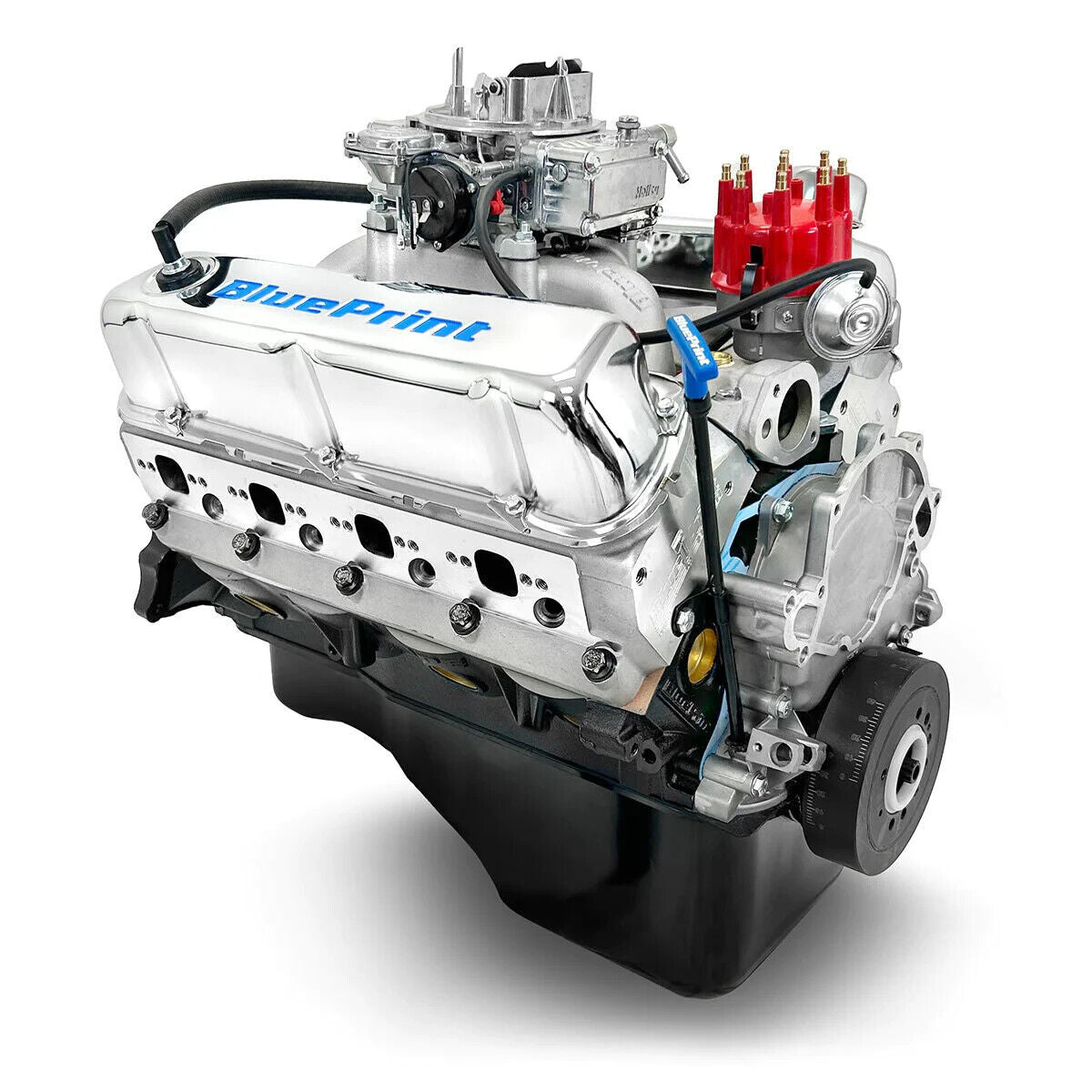

BluePrint Engines Ford 347 Stroker Dressed Crate Engine # BP3479CTC

Only 2 left!
AU $14,500.00

Notify me when back in stock

  • Limited Stock
  • In Stock

DESCRIPTION:

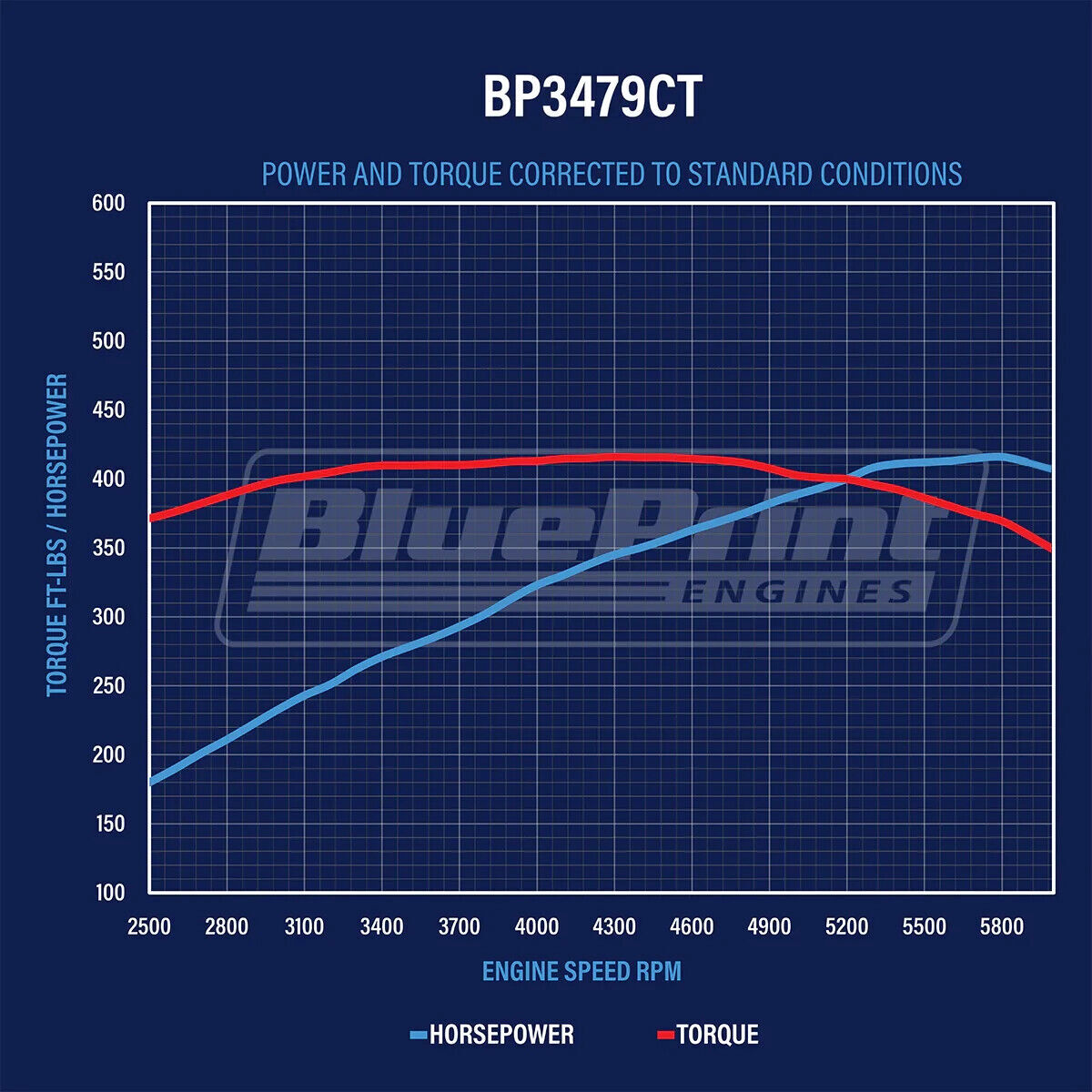

  • HP & Torque: 415 HP / 415 FT LBS
  • Compression ratio: 10.0:1
  • Aluminum heads
  • Hydraulic roller cam

BLOCK:

  • NEW BluePrint Engines' high-strength cast iron block
  • Increased deck thickness and strength webbing
  • Priority main oiling
  • 4-bolt main
  • 1-piece rear main seal
  • Improved water jacket design

    ROTATING ASSEMBLY:

    • 3.400" stroke
    • Forged 5.400" connecting rods
    • Forged pistons
    • 28oz external balance

    CYLINDER HEADS:

    • BluePrint aluminum cylinder heads -HP9009
    • 60cc chamber
    • 2.02" intake/1.60" exhaust valves
    • 190cc intake/60cc exhaust runners

    CAM SPECS:

    • Roller cam
    • .543 intake / .554 exhaust
    • 218 intake / 226 exhaust duration
    • @ .050 - 112-degree lobe separation

    IGNITION TIMING:

    • 10-16 degrees initial, 32-34 total

    ALSO INCLUDES:

    • Front sump oil pan
    • Intake manifold
    • Carburetor
    • Distributor
    • Harmonic balancer
    • Valve covers
    • Timing cover

    NOTES:

    • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY
