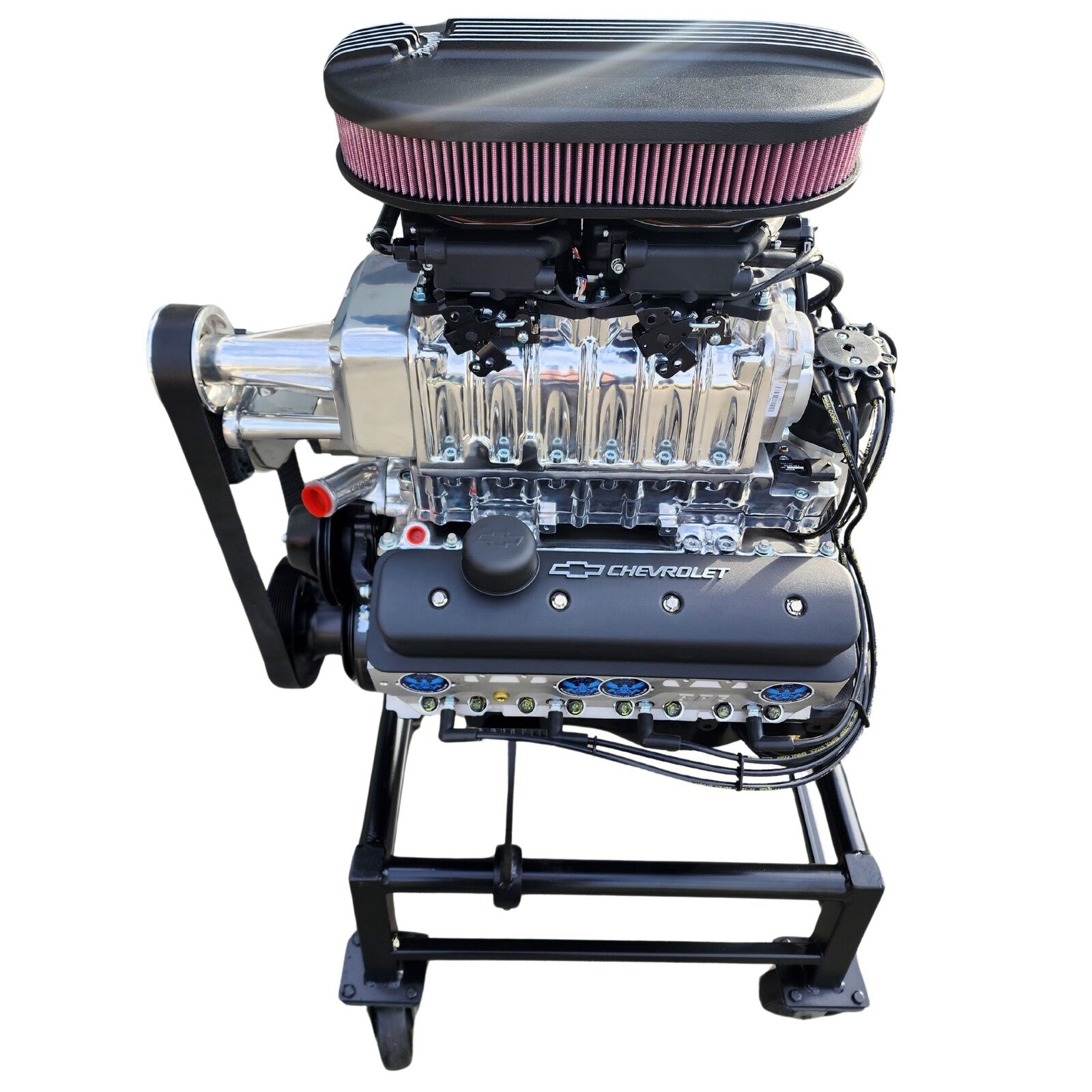

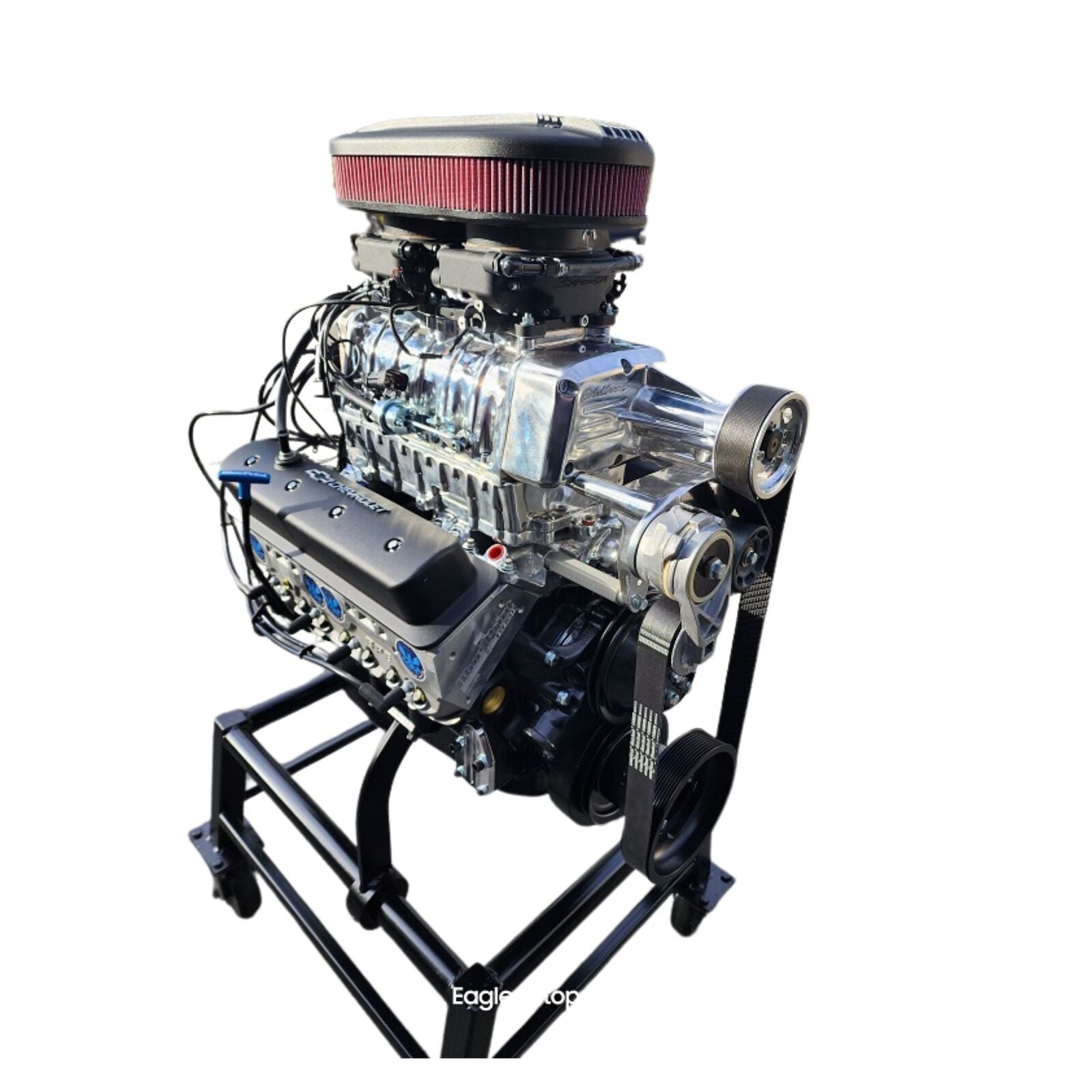

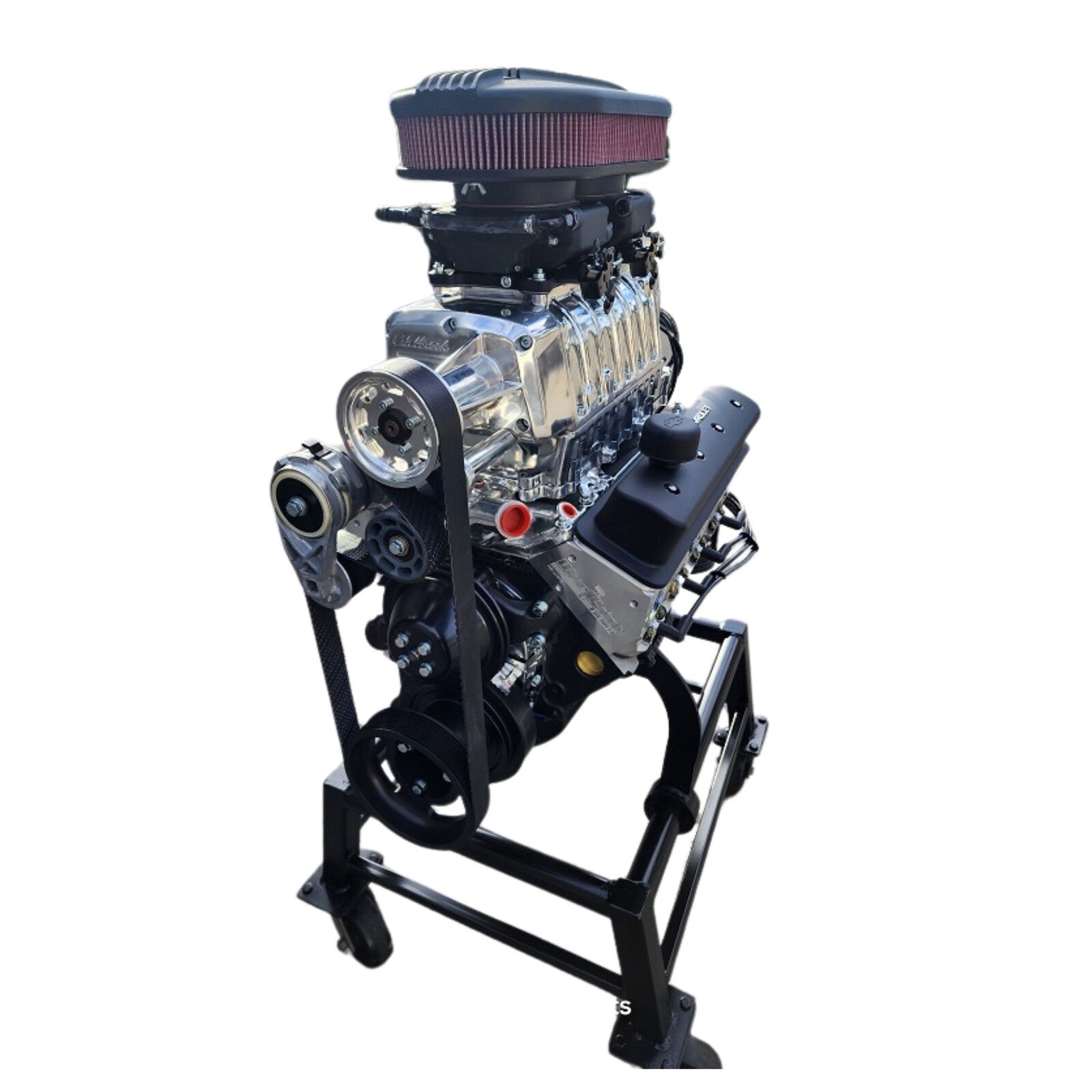

AA1 BluePrint Engines Chev 383 Supercharged Sniper Crate Engine # 383-EDEL-SUPER

BluePrint Engines Chev 383 Supercharged Sniper Crate Engine

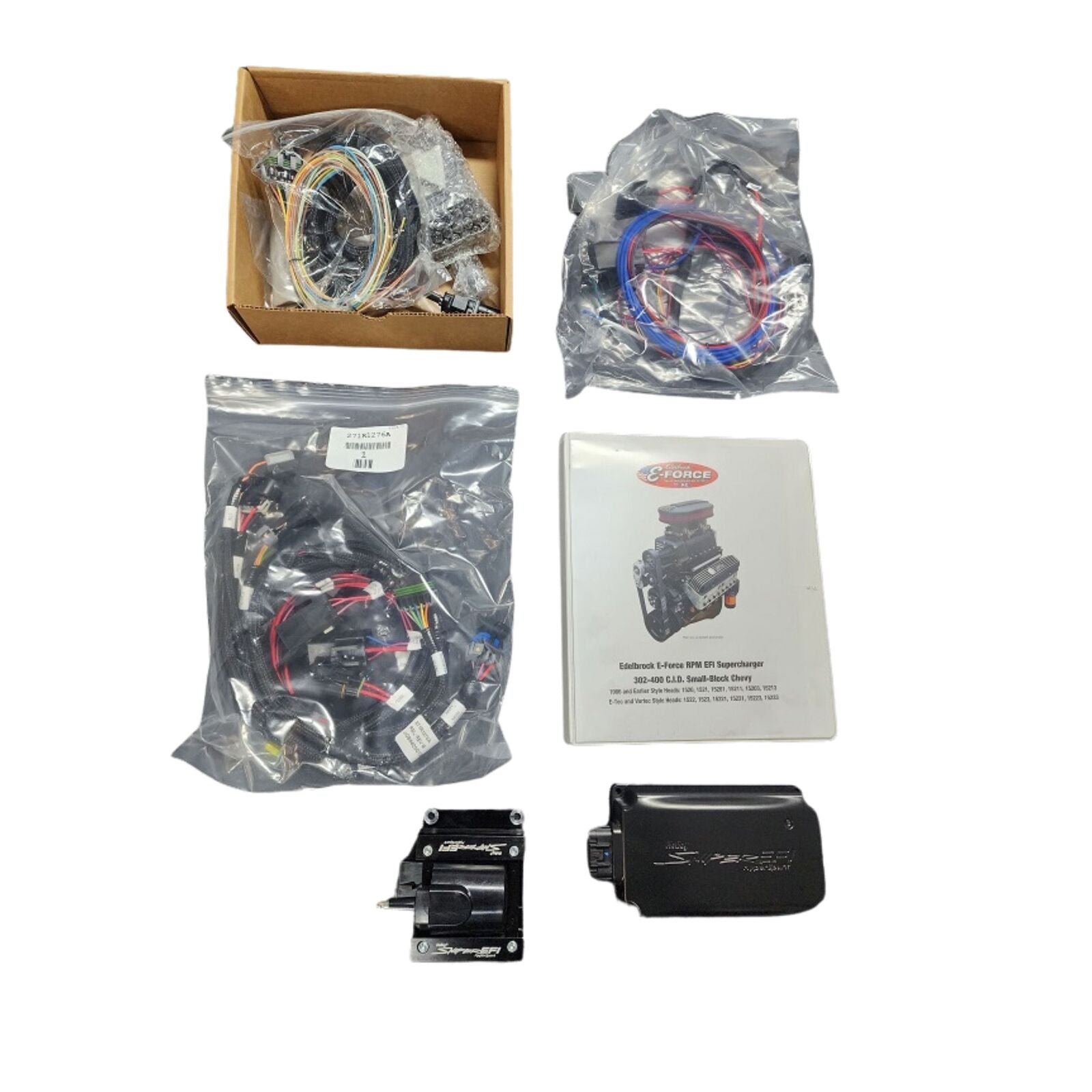

Holley Dual Snipers ( 550-528 )

Holley Hyperspark Ignition System ( 565-300K )

Edelbrock Supercharger ( 15221 )

Scat Balancer

Black Bowtie Alloy Rocker Covers

SWP

Edelbrock Dual Oval Air Cleaner Assembly

BluePrint Engines Chev 383 Stroker Crate Engine 438hp

• Compression Ratio: 10.0:1
  Aluminum Heads
  Hydraulic Roller Cam
  Cast Steel Crank
  Hypereutectic Pistons

• NEW BluePrint Cast Iron Block
  Manufactured and Machined in the USA!
  4-Bolt Main
  4.000"
  1-Piece Rear Main Seal
  Mech fuel pump provision: Yes
  Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• New BluePrint Cast steel crankshaft
  3.750" Stroke
  OEM type 5.700" connecting rods w/ 150,000 psi bolts
  Hypereutectic pistons
  External Front/ External Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - H8002K
  64cc chamber
  2.02" intake/1.60" exhaust valves
  195cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
  .544 Intake .555 Exhaust
  230 Intake / 236 Exhaust duration
  @ .050, 110 0 lobe separation angle

FREIGHT WILL BE CALCULATED BY LOCATION
