BluePrint Engines Chev 400 508HP Base Long Block Crate Engine # BP4002CT1

BluePrint Engines Chev 400 508HP Base Long Block Crate Engine # BP4002CT1

by Blueprint
Only 7 left!
AU $12,950.00

Notify me when back in stock

  • Limited Stock
  • In Stock
Chev BluePrint GM 400 C.I.D. 508HP Base Long Block Crate Engine # BP4002CT1
  • HP & Torque: 508 HP / 473 FT LBS
    Compression Ratio: 10.3:1
    Aluminum Heads
    Hydraulic Roller Cam
    Forged Crank
    Forged Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.125" Bore
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Forged Crankshaft
    3.750" Stroke
    OEM type 5.700" connecting rods w/ 150,000 psi bolts
    Forged Pistons
    Internal Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - HP8103
    64cc chamber
    2.08" intake/1.60" exhaust valves
    220cc intake/67cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .555 Intake .576 Exhaust
    236 Intake / 242 Exhaust duration
    @ .050 - 110 0 lobe separation

IGNITION TIMING:

  • 10-160 initial and total timing 32-340 at 3500 RPM

ALSO INCLUDES:

  • Valve covers, oil pan and timing cover

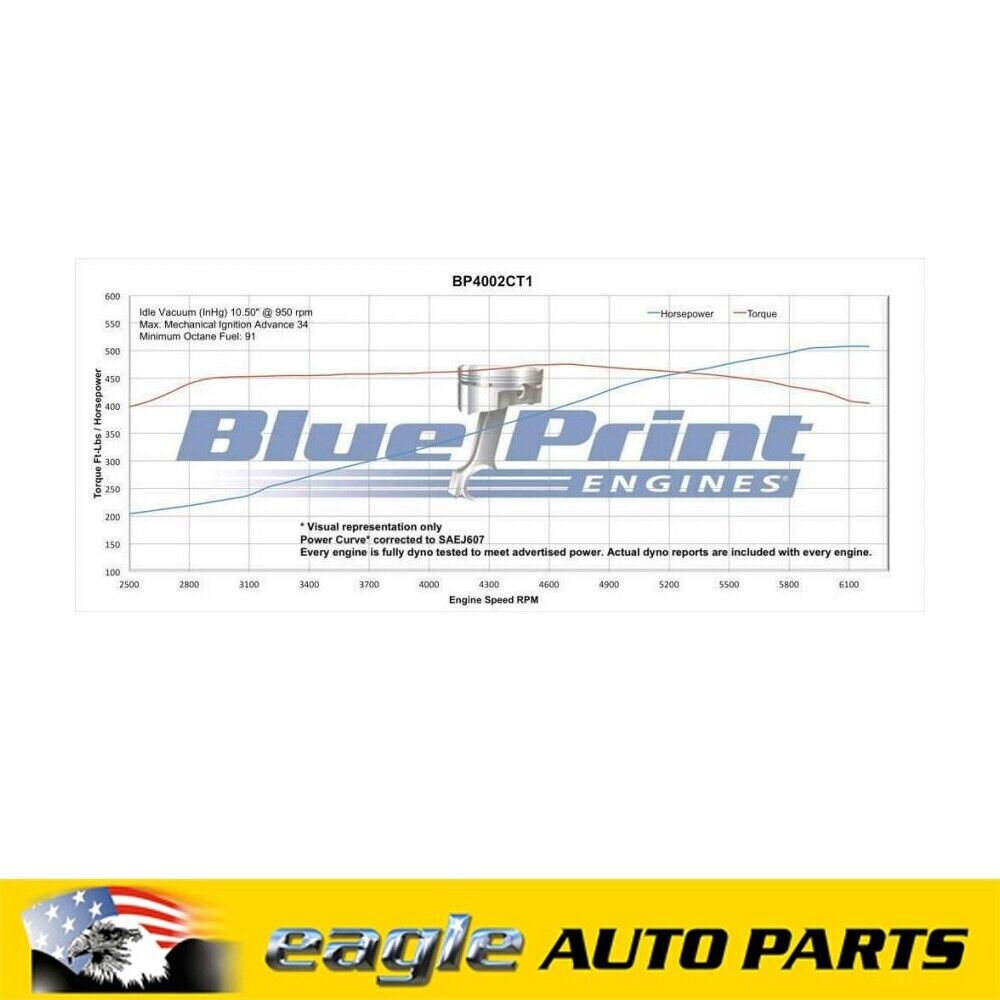

    Dyno test results shipped with engine
