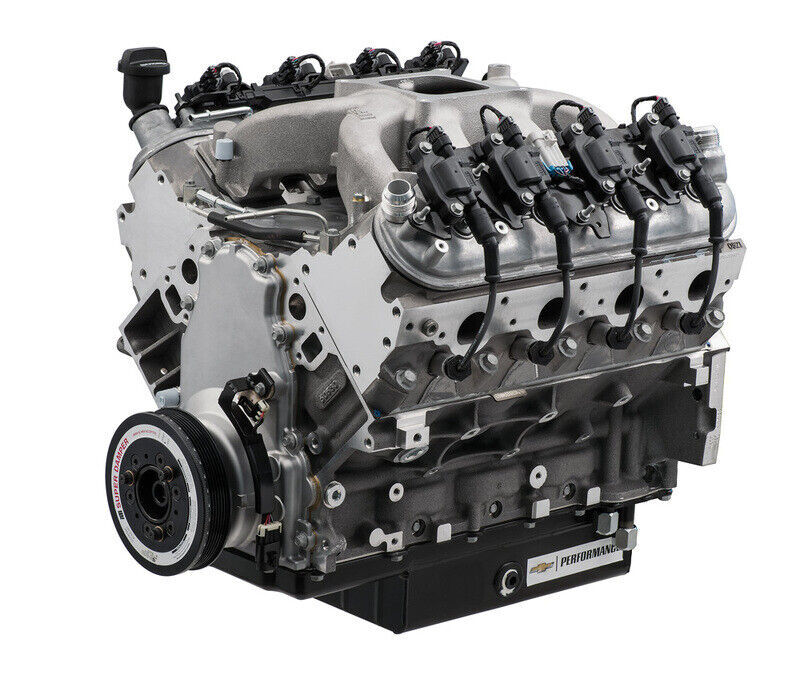

Chev Performance CT525 Circle Track Performance Crate Engine 6.2L LS3 # 19434598

Chev Performance CT525 Circle Track Performance Crate Engine 6.2L LS3 # 19434598

Freight will be calculated by location

HIGH-RPM PERFORMANCE WITH NEW FORGED PISTONS!

Chevrolet Performances deep-breathing, high-revving CT525 6.2L crate engine is upgraded with forged pistons designed to support its performance and enhance its durability.

The CT525 is based on the LS engine family and is similar to the 6.2L LS3, but weve adapted it to circle track racing with a carbureted intake manifold, 6-quart racing oil pan and more. The engine is lightweight and strong, using an aluminum block with cross-bolted 6-bolt main caps and high-flow LS3 rectangular-port cylinder heads. This combination is rated 533 hp at 6,600 rpm and a hefty 477 lb.-ft. of torque at 5,200 rpm, per Chevrolet Performance testing.

The CT525 6.2L comes with coil-on-plug ignition and an SFI-certified balancer. All thats needed to complete the assembly is a carburetor, starter and our LS/LSX ignition controller (P/N 19355863)all available from Chevrolet Performance.

TECH SPECS

Part Number: 19418211

Engine Type: LS-Series Gen IV Small-Block V-8

Displacement (cu in): 376 (6.2L)

Bore x Stroke (in): 4.000 x 3.62 (103.25 x 92mm)

Block (P/N 12673475): Cast aluminum with 6-bolt, cross-bolted main caps

Crankshaft (P/N 12597569): Nodular iron

Connecting Rods (P/N 12649190): Powdered metal

Pistons (P/N 19418214): Forged aluminum

Camshaft Type (P/N 88958770): Hydraulic roller

Valve Lift (in): .525 intake / .525 exhaust

Camshaft Duration (@.050 in): 2260 intake / 2360 exhaust

Cylinder Heads (P/N 12675871): LS3 rectangular port; aluminum as-cast with 68cc chambers

Valve Size (in): 2.165 intake / 1.590 exhaust

Compression Ratio: 10.7:1 Nominal

Rocker Arms (P/N 12696105 int): Investment-cast, roller trunnion

Rocker Arms (P/N 12681275 exh): Investment-cast, roller trunnion

Rocker Arm Ratio: 1.7:1

Recommended Fuel: Premium pump

Maximum Recommended rpm: 6,700

Reluctor Wheel: 58x

Balanced: Internal
