Quick Fuel Black Diamond Marine Series 750cfm 4-Barrel Carburetor # M-750

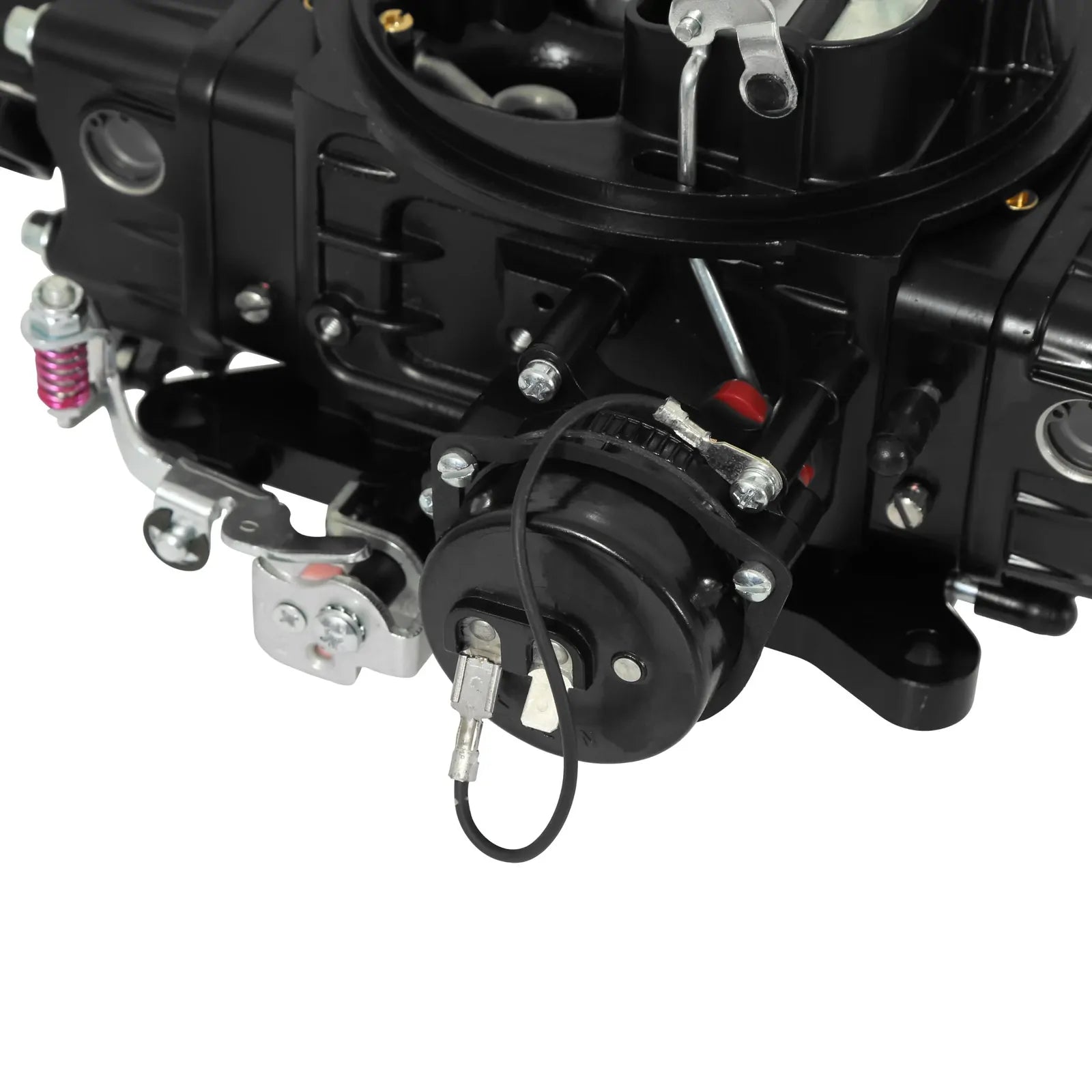

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength. Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature Electric choke - Fully adjustable, one wire hookup J tubes to prevent spillage PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates Built-in sight glass windows for easy float adjustment Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds QuickLink secondary adjustment for fast and easy changing of opening rates

CFM:

750

Fuel Category:

Gasoline

Remanufactured:

No

Number of Barrels:

4

Carburetor Flange:

Square bore

Choke:

Electric

Secondary Type:

Mechanical

Fuel Inlet:

Dual

Primary Jet Size:

75

Primary Power Valve (Hg):

6.5 Hg

Secondary Jet Size:

83

Primary Outer Air Bleed Sizes Included:

70

Primary Inner Air Bleed Sizes Included:

31

Secondary Outer Air Bleed Sizes Included:

70

Secondary Inner Air Bleed Sizes Included:

31

Carburetor Color:

Satin black

Ford Kickdown:

No

Booster Type:

Down-leg

Throttle Linkage Type:

Universal

Carburetor Height (in.):

3.250 in.

Quantity:

Sold individually.

Notes:

Fuel inlets are 7/8-20 in. thread.
