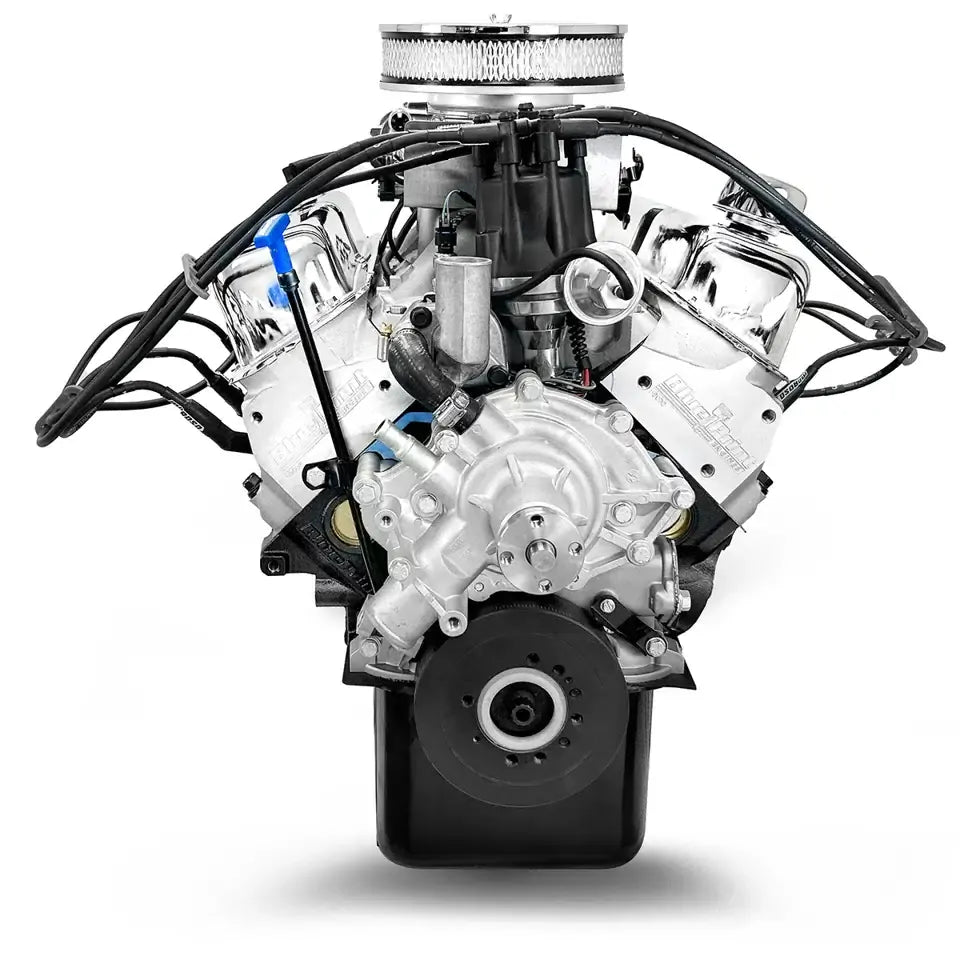

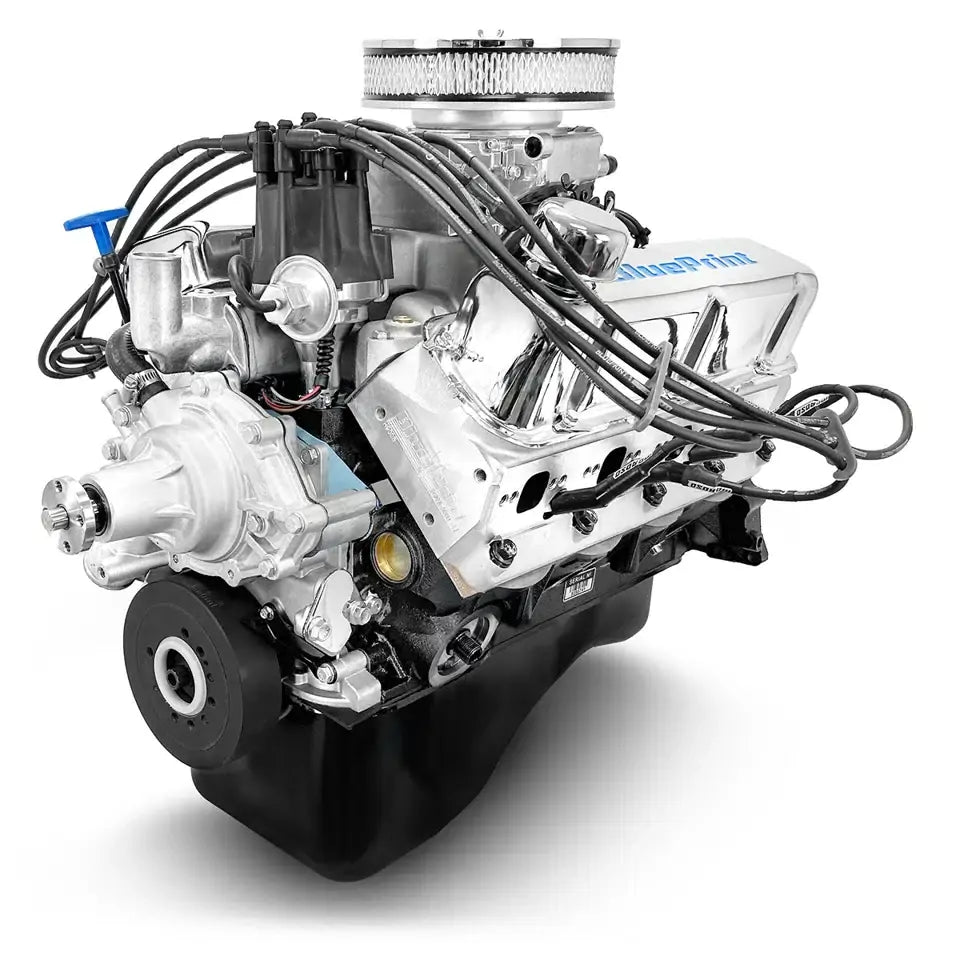

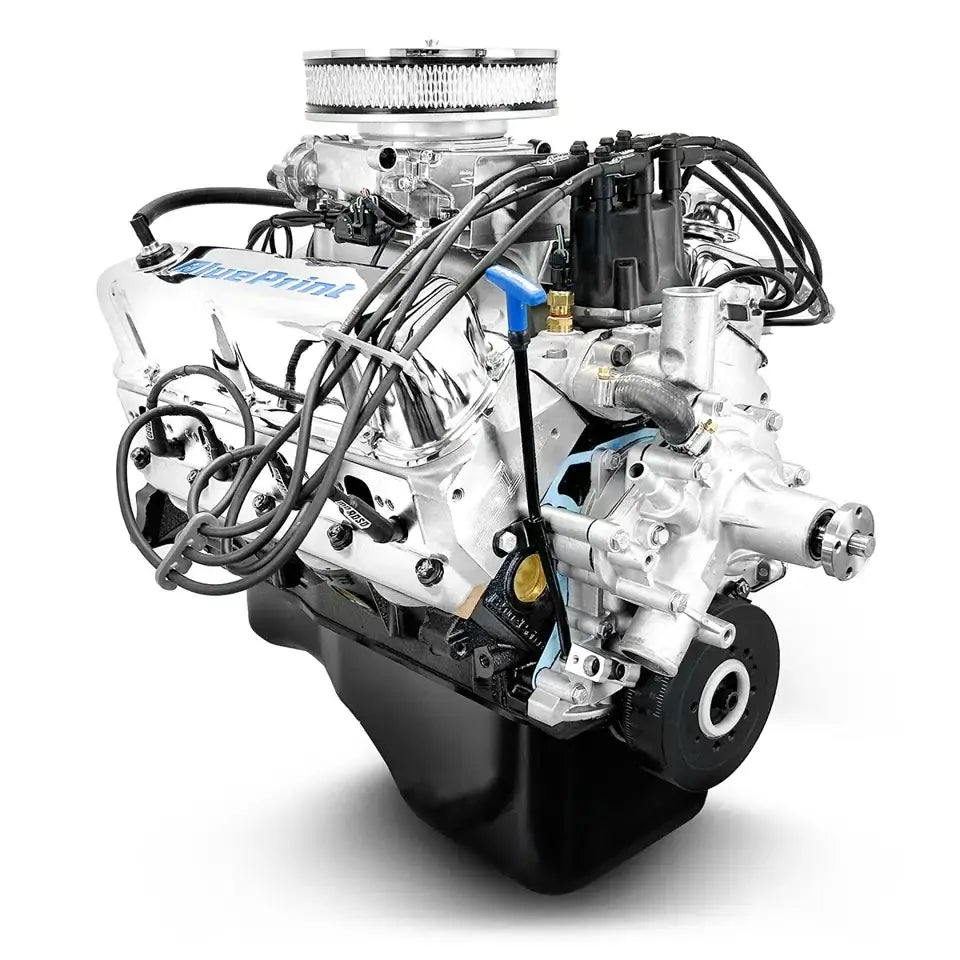

BluePrint Engines Ford 302 Windsor Crate Engine / Sniper 361hp # BP302CTFD

BluePrint Engines 302 Ford-compatible crate engine is built for dependable power and smooth street performance. Producing 361 horsepower and 334 ft. lbs. of torque, it offers plenty of punch while running easily on 87 octane fuel. Featuring a high-strength block, BluePrint aluminum heads, and a hydraulic roller cam, this engine delivers a strong, reliable combination thats ideal for cruising or daily driving. It comes complete with a front sump oil pan, valve covers, timing cover, and dipstick. Includes the modern Holley Sniper II EFI system for quick starts and smooth drivability. This 302 is designed to work perfectly with power brakes, stock torque converters, and stock gearinggiving you classic Ford performance with modern reliability.

Description:

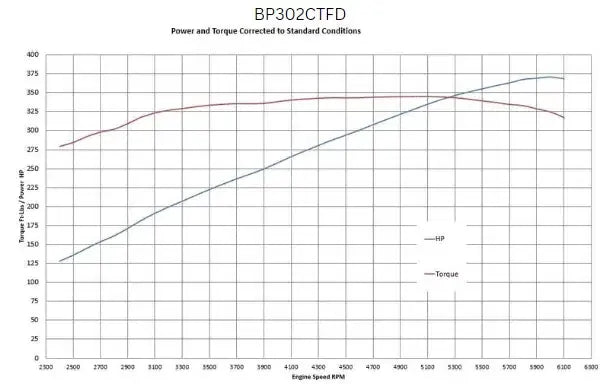

• Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque
• Compression Ratio: 9.4:1
• BluePrint Engines Aluminum Heads
• BluePrint Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crank
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -HP9008
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Holley Sniper 2 EFI System - BPP550-510-3XX
• Standard Rotation Water Pump - BPP16230
• Intake Manifold - BPP302INT
• Pro-Series Ready Run Distributor - BPP3023BK
• 50oz Harmonic Balancer - BPP50
• Front Sump Oil Pan - BPP302FSPAN
• BluePrint Logo'd Valve Covers - BPP9237
• BluePrint Timing Cover - BPP302351TC
• Fuel Pump - BPP6588
• BluePrint Dipstick - BPP6920
• Thermostat and Thermostat Housing
• Spark Plugs - BPP7938
• Spark Plug Wires
• 9" Air Cleaner
