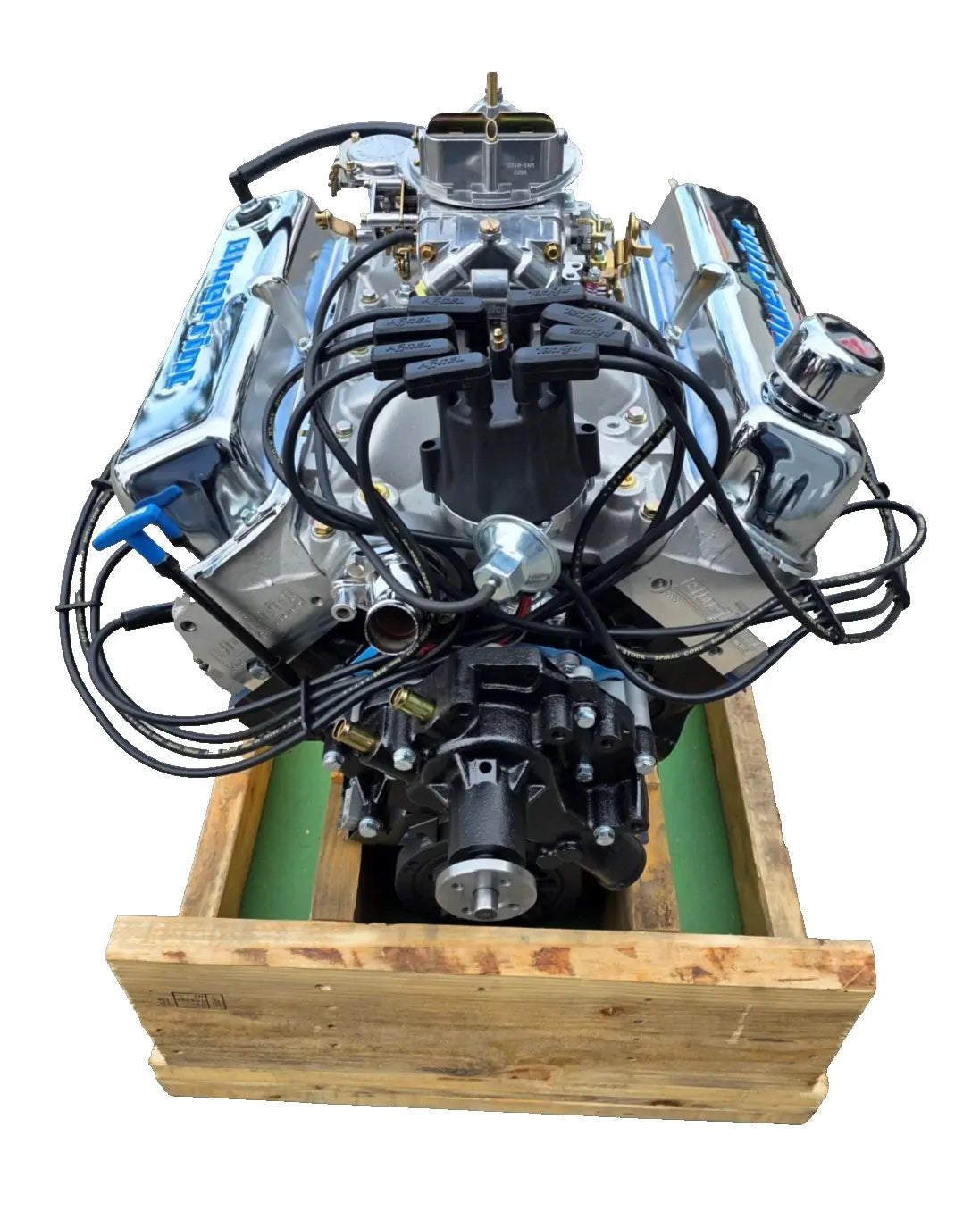

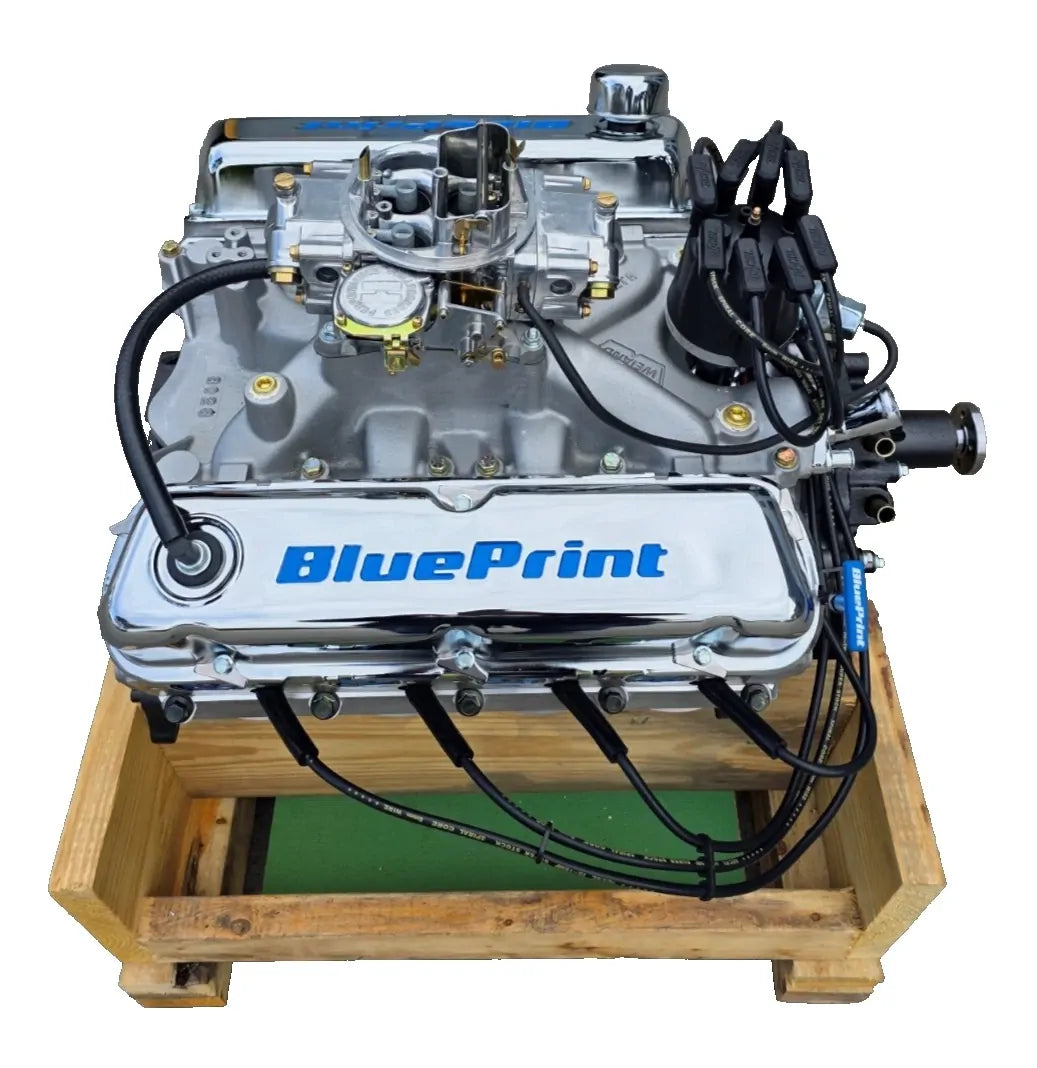

BluePrint Engines Ford 408 Windsor 425HP Stroker Dressed Engine # BPF4089CTCD

• HP & Torque: 450 HP / 470 FT LBS
  Compression Ratio: 9.8:1
  Aluminum Heads
  Hydraulic Roller Cam
  Cast Steel Crank
• Forged Pistons

BLOCK:

• Hand picked seasoned block
• Square and parallel decked
• Line honed main bearing bore
• Cylinders honed on computer controlled machine to within .0002 straightness and roundness
• Cylinders are Sonic tested for thickness
• 2-Bolt Main
  4.000" Bored
• 1-Piece Rear Main Seal
• Mech fuel pump provision: yes

ROTATING ASSEMBLY:

• New Cast steel crankshaft
  4.000" Stroke
  Forged I-Beam 6.200" connecting rods
• Forged Pistons
• Internal Balance

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads -HP9009
• 60cc chamber
• 2.02" intake/1.60" exhaust valves
• 90cc intake/65cc exhaust runners

CAM SPECS:

• Roller
  .579 Intake / .579 Exhaust
  236 Intake / 248 Exhaust duration @ .050 - 114 degree lobe separation

IGNITION TIMING:

• 34 degrees total at 3500 RPM

ALSO INCLUDES:

• Oil pan, dipstick, timing cover and valve covers
  Dyno tested and shipped with results
