Fuel Injection System, 4150 Flange, Throttle Body Injection, Optional Spark Control, Self Learning, Supports up to 650HP, Universal, Kit
Fuel Injection Style:
Throttle body
Fuel Injection System Type:
Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas:
650
Timing Control Compatible:
Yes
ECM Included:
Yes
Self Tuning:
Yes
User Tunable:
Yes
Fuel System Included:
None
Ignition System Included:
None
User Interface Included:
Bluetooth
EGR:
No
Transmission Controller Included:
No
Metering Style:
Speed density
Multi-Port Fuel Rails Included:
No
Throttle Body Included:
Yes
Throttle Body Mounting Flange:
4-barrel square bore
Venturi Quantity:
4
Airflow Rate (cfm):
1,000 cfm
Throttle Body Material:
Cast aluminum
Throttle Body Color:
Natural
Injectors Included:
Yes
Injector Size (lbs./hr.):
90 lbs./hr.
Calibration Module Included:
Yes
Wiring Harness Included:
Yes
Oxygen Sensor Included:
Yes
Fuel Pressure Regulator Included:
No
MAP Sensor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
IAC Motor Included:
Yes
Quantity:
Sold as a kit.
Edelbrock EZ-Street EFI Systems
Engineered to provide an affordable and user-friendly upgrade for any V8 engine originally equipped with a carburetor, these EZ-Street EFI system seamlessly integrate cutting-edge technology with traditional styling. Capable of supporting up to 650 horsepower, the EZ-Street EFI system combines advanced annular fuel distribution with modern CAN communication protocols to provide reliable, high-performance results in a simplified package.

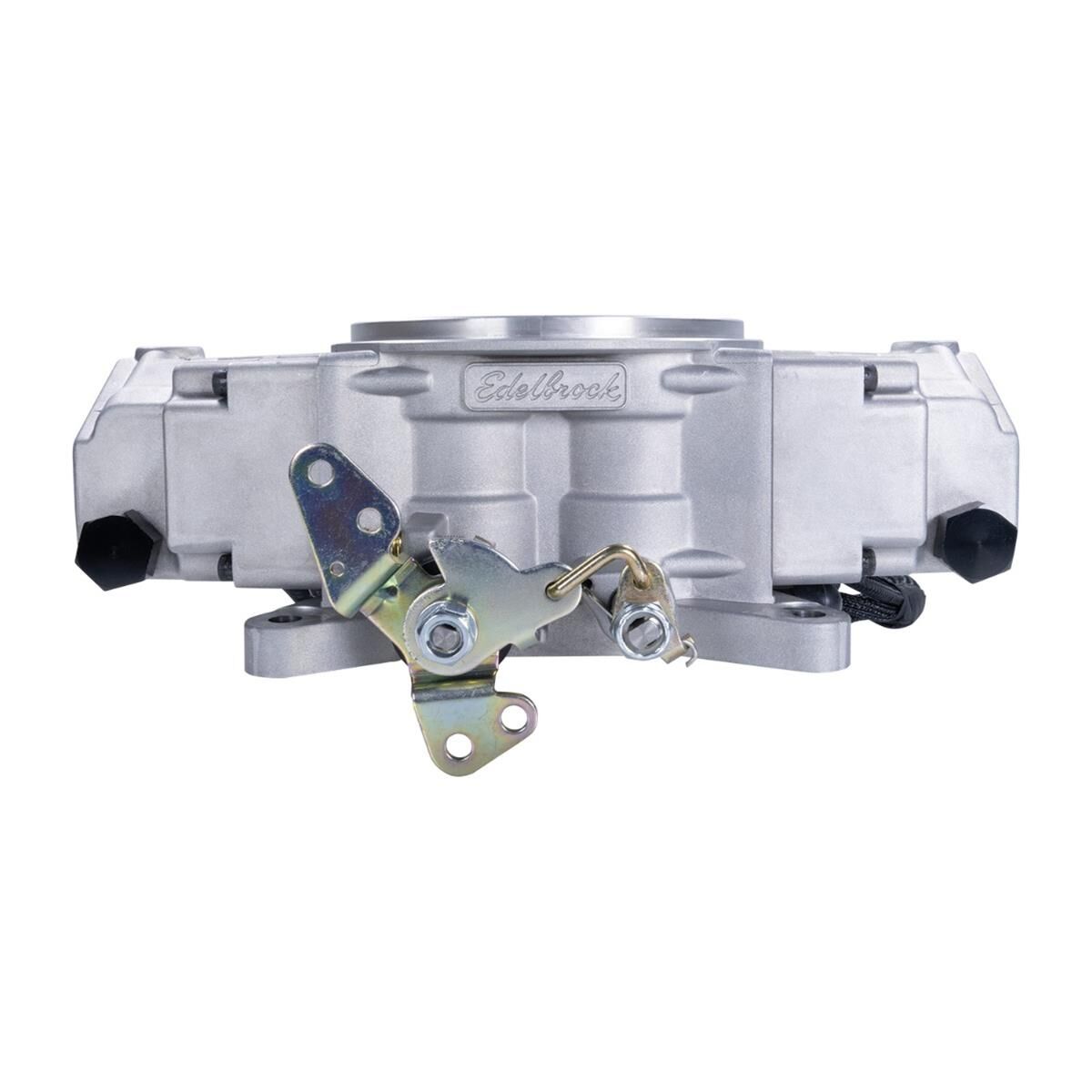

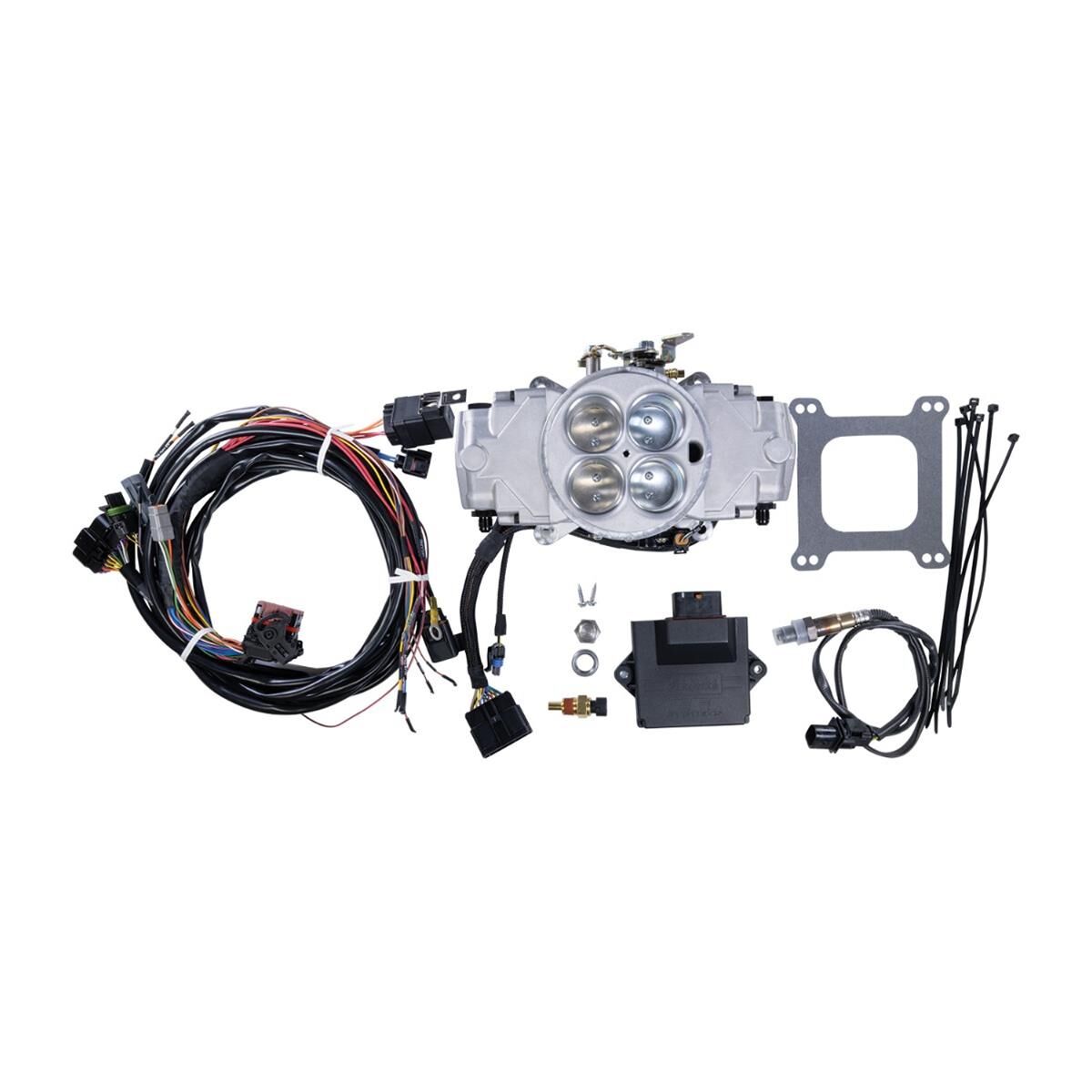

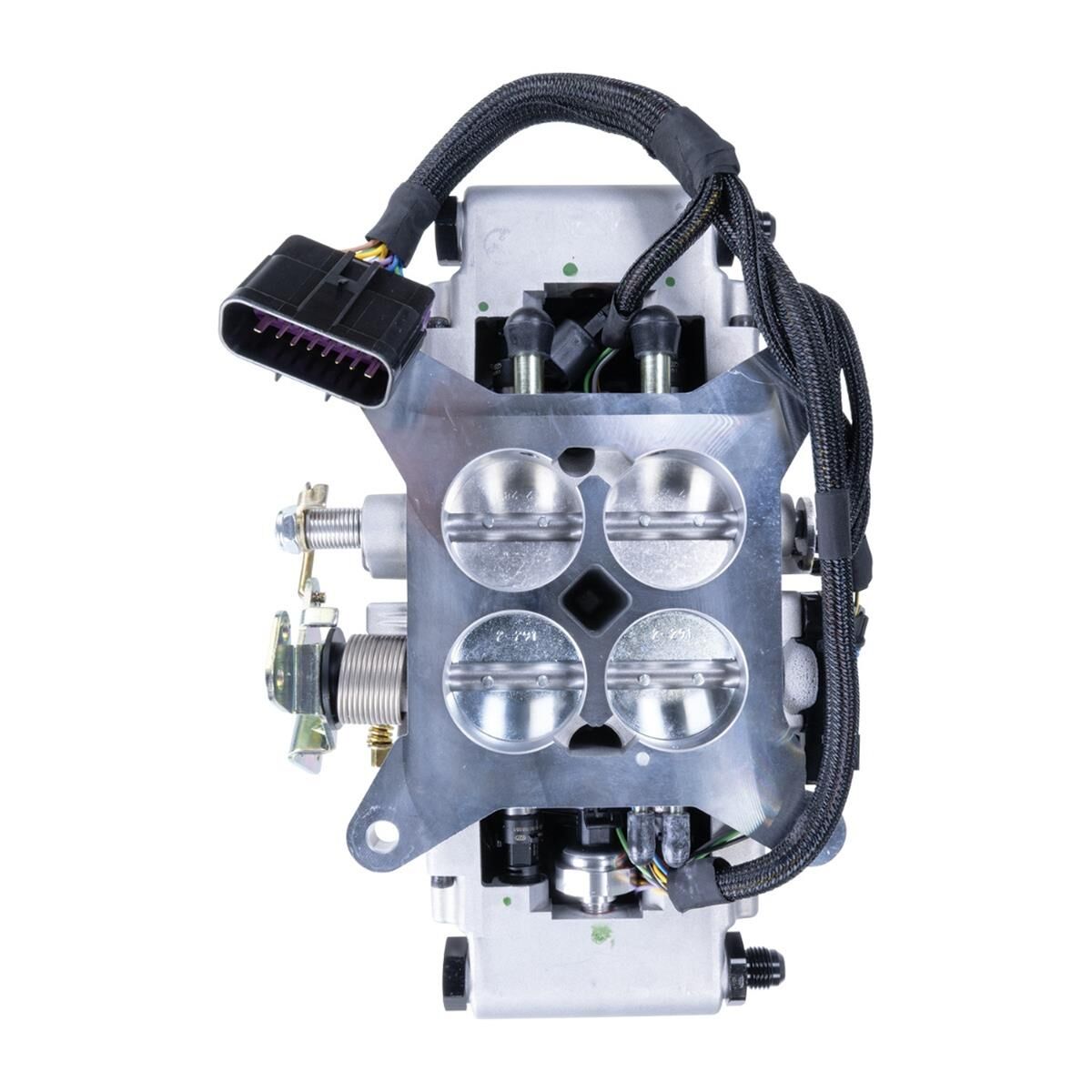

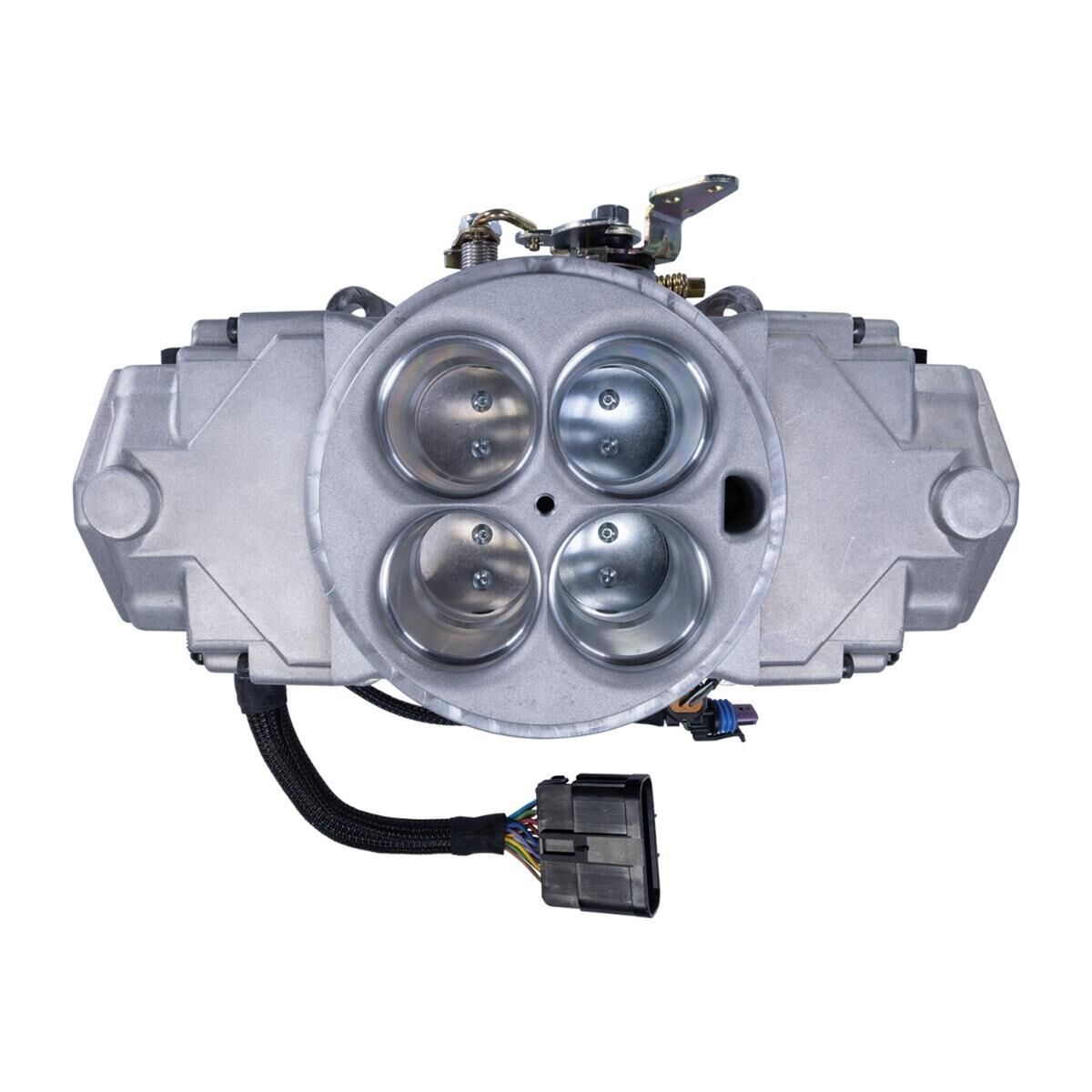

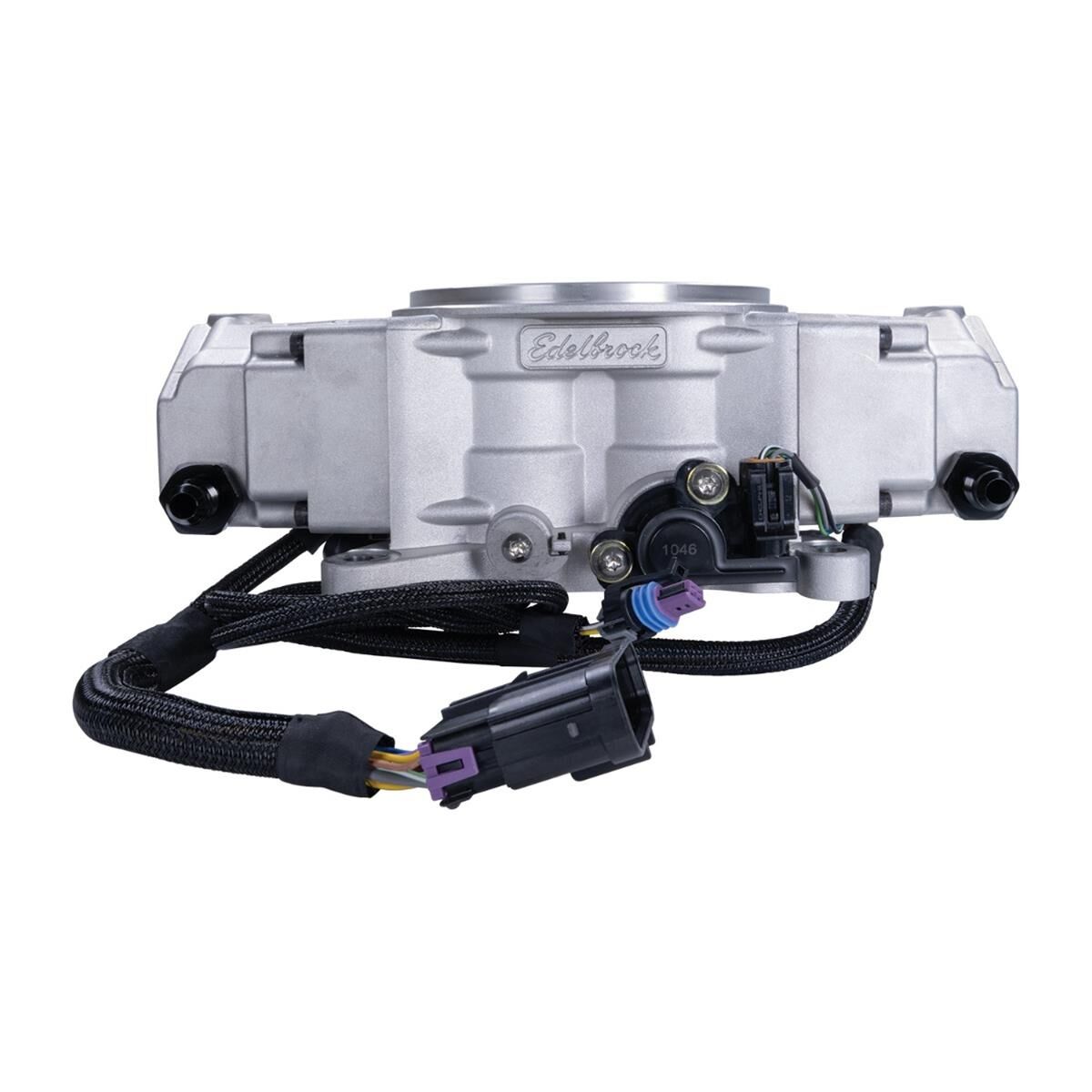

The four-barrel aluminum throttle body design mounts to any intake manifold with a standard 4150-style flange and accepts a traditional round air cleaner, just like a classic carburetor. Each unit arrives fully preassembled and pressure-tested, complete with integrated injectors, throttle position and manifold sensors, fuel rails, linkage, and a Bosch 4.9 wideband oxygen sensor. It also includes an ECU, a high-quality wiring harness with a simple 4-wire hookup, and detailed installation instructions.
EZ-Street features closed-loop, self-learning fuel technology, with a calibration wizard to make initial startup simple; no need for custom tuning or a laptop. The included EZ-Street Bluetooth Tuner App, available for Download on Android or IOS allows users to configure the system, adjust settings, and monitor performance through intuitive preprogrammed dashboards. Data logging, fuel control, and dual electric fan management are all accessible directly from the easy-to-use app on your smartphone or tablet.
Beyond fuel delivery, the EZ-Street EFI offers the option of fully programmable ignition control, enabling optimized performance and improved fuel efficiency. When paired with a Pro-Tuner distributor (sold separately), the EZ-Street EFI can deliver fully integrated timing control at the touch of your fingers. With an internal coil driver and compatibility across most HEI distributors, ready-to-run distributors, and CDI boxes, the system eliminates the need for separate ignition modules. Timing control features require the use of a Edelbrock Pro-Tuner distributor for full functionality to be enabled.
Features include:
* Choice of three calibrations offers great out of the box performance even with big camshafts
* 4150 style Throttle Body Fuel Injection fits most domestic V8 engines
* Optional spark control
* Airflow rate:1,000 cfm
* Mounting hardware included
* Works with any fuel system that provide a minimum of 58 psi
