MSD Digital 6AL Ignition Controllers # MSD6425
Ignition Box, MSD 6AL, Digital CD, with Rev Limiter, Red, Each
Ignition Box Output:Capacitive discharge
Circuitry:Digital
Rev Limiter:Yes
Timing Retard:None
Data Acquisition:No
CD Voltage Output to Coil:520-540 V
Current Draw:0.7 amps per 1,000 rpm
Spark Output (millijoules):135-145 Millijoules
Minimum Operating Voltage:12 V
Maximum Operating Voltage:15 V
Length (in):8.000 in.
Height (in):2.250 in.
Width (in):4.000 in.
Ignition Box Color:Red
Coil Included:No

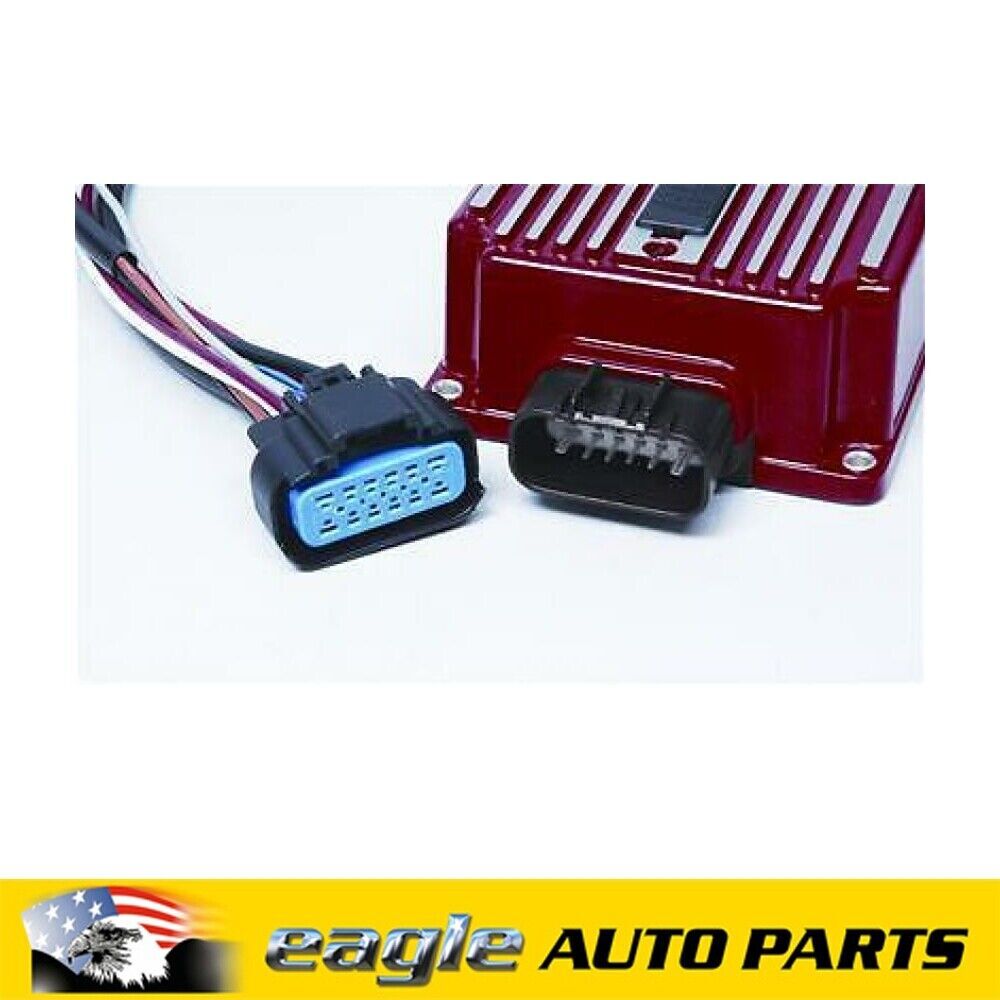

Advance with the digital power of your popular favorite--MSD 6AL ignitions. With less power draw and higher output, MSD moves you with "the fire to drive" in a digital powerhouse! Inside microprocessors, updated circuits and efficient components monitor and handle every firing and rev limit to produce more power while pulling less current. Don't worry; features that made their 6AL boxes your first choice remain but with improved output--more than135mJ of spark energy for every firing with 530+ volts to the coil! And, to go with the new power, a new look. These digital 6AL ignition controllers are sleek with a lower profile. Wiring is routed out one end through a sealed and locked connector and two rotary dials to set rpm limit are positioned right on top--easier installation, super easy access and a clean, neat appearance under the hood. Controllers are supplied with wiring harness and components you need for install plus, vibration mounts. Increased output and proven multiple-spark power--MSD digital 6AL ignition controllers are a definite win-win!
